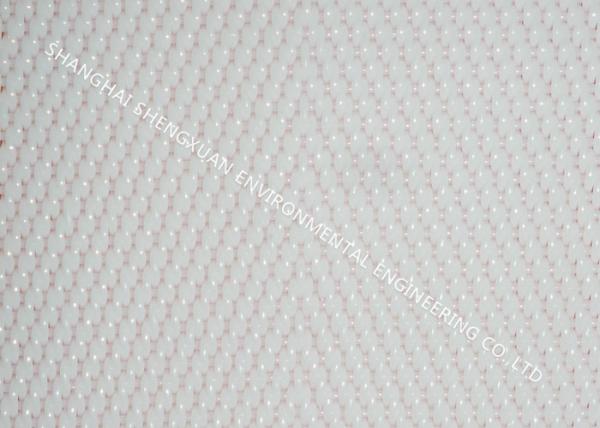

High Strength polyester dryer mesh filter belt conveyor
| Product name | Polyester dewatering conveyor belts |
| Type No. | 22504 |
| Warp Diameter | 0.5mm |
| Weft Diameter | 0.5mm |
| Density in warp | 23.6/cm |
| Density in weft | 11/cm |
| Thickness | 2.25mm |
| Weight | 1040g/m2 |
| Bursting strength | 8183/6004N |
| Elongation | 24-41% |
| Air permeability | 4474L/M2.S |
| Joint | Endless, self pin |
| Usage | Non woven cloth punching,forming of paper making,
conveyor,dryer,sewage treatment |
Instructions and Attentions
1. Open the package put the belt lay on the floor Check the
dimension is the correct size you needed
2. Put one end of the belt along the running direction of the
Filter and lead into the roller.
Following the Filter instructions put the belt goes through each
roller.
Attention:"Cake Side”should be the touch side contact with the
sludge.
The arrow direction shows correct belt running direction.
3. Align the two ends of belt,put the hinge pin through the seam
from one end to the other.The hinge pin may have some obstruction
when go through in the middle.You can use pincers clamp one end of
hinge pin and help push forward to the other end.When you align the
two ends make sure the contact two ends are in same width.
4. Bend two ends hinge pin back to the seam and clamping tight.
5. Take out the glue which send together with the package.Put the
glue evenly into the seam and scrape the glue make sure the seam
surface is flat and smoothly.Only running the belt after the glue
is completely drying.
6. Following the Filter operation instructions,tight the belt and
running the belt 4 to5 rounds with low speed.Make sure the belt no
strange,and then you C an tur n up to the normal speed.
7. Belt running should away from the sunny skies condition.No sun
exposure.
Gently handing when you moving the
belts,Non-throwing,Non-rolling.Non dragging
Keep away from the strong acids,alkali and organic solvents when
you store.
